HIKVISION DS-PM1-I8O2-H AX PRO WIRED INPUT EXPANDER

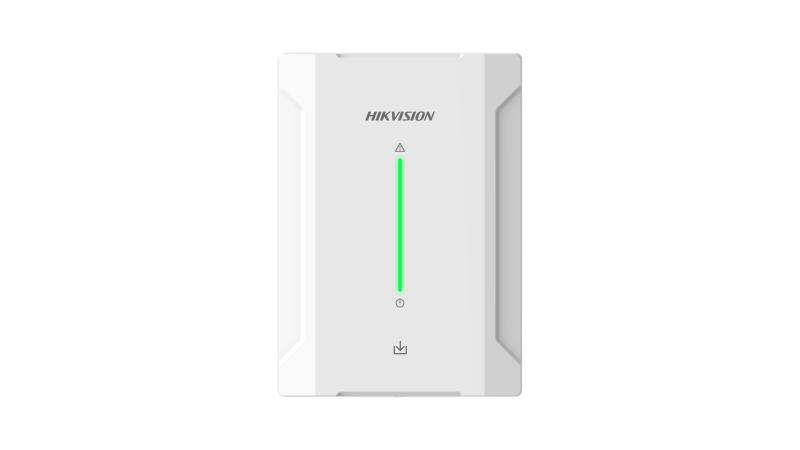

Hikvision DS-PM1-I8O2-H AX PRO Wired Input Expander

Hikvision DS-PM1-I8O2-H — Wired Input Expander (Cascade) je Hikvision žičani ulazni ekspander za AX PRO / AX HYBRID PRO alarmni sistem. Opis je pripremljen prema specifikacijama sa zvanične Hikvision stranice proizvoda.

Ključne karakteristike:

• Tip: Wired Input Expander (Cascade).
• Zone: 8 on-board wired zones.
• Povezivanje: Support 3EOL connection (Alarm: 1KΩ; Tamper: 1KΩ; Fault: 2.2KΩ).
• Detekcija: Support zone alarm, tamper, masking, fault, short detection.
• Izlazi: 1 power output for wired detectors; Output Voltage: 9 to 12 VDC; Output Current: Maximum 500 mA; IO Output: 2 (connect to relay module).
• Sabirnica: Bus: 2×Speed-X bus, 1 input for control panel connection and 1 output for expander cascading.
• Zaštita: Tamper-Proof: Support (front and rear); LED Indicator: 1 for power, 1 for fault.
• Napajanje: Power supply: 11 to 24 VDC; Typical voltage: 12 VDC; Power consumption: Maximum current: 119 mA@12 VDC; Quiescent current: 45 mA@12 VDC.
• Dimenzije (WxHxD): 110 mm × 155 mm × 32 mm; 252.5 g; Shell material: Plastic; Operation temperature: -10°C to 40°C; Operation humidity: 10% to 90%.
